FOX FRAME
ceiling grid wall angle

FOX FRAME ceiling grid wall angle has several plus:

> double face design,
> high durability and corrosion resistance,
> RAL/NCS powder coating,
> easy installation mode,
> 100% recyclable Eco design.

It is a master piece for dealers, thanks to its extensive applicability to realize acoustic floating island ceilings in a variety of contexts such as open spaces, offices, meeting rooms, hotels, shopping centre and dining areas. FOX FRAME ceiling grid wall angle has a maximum length of 6 m and dimensions of 25x100 mm.

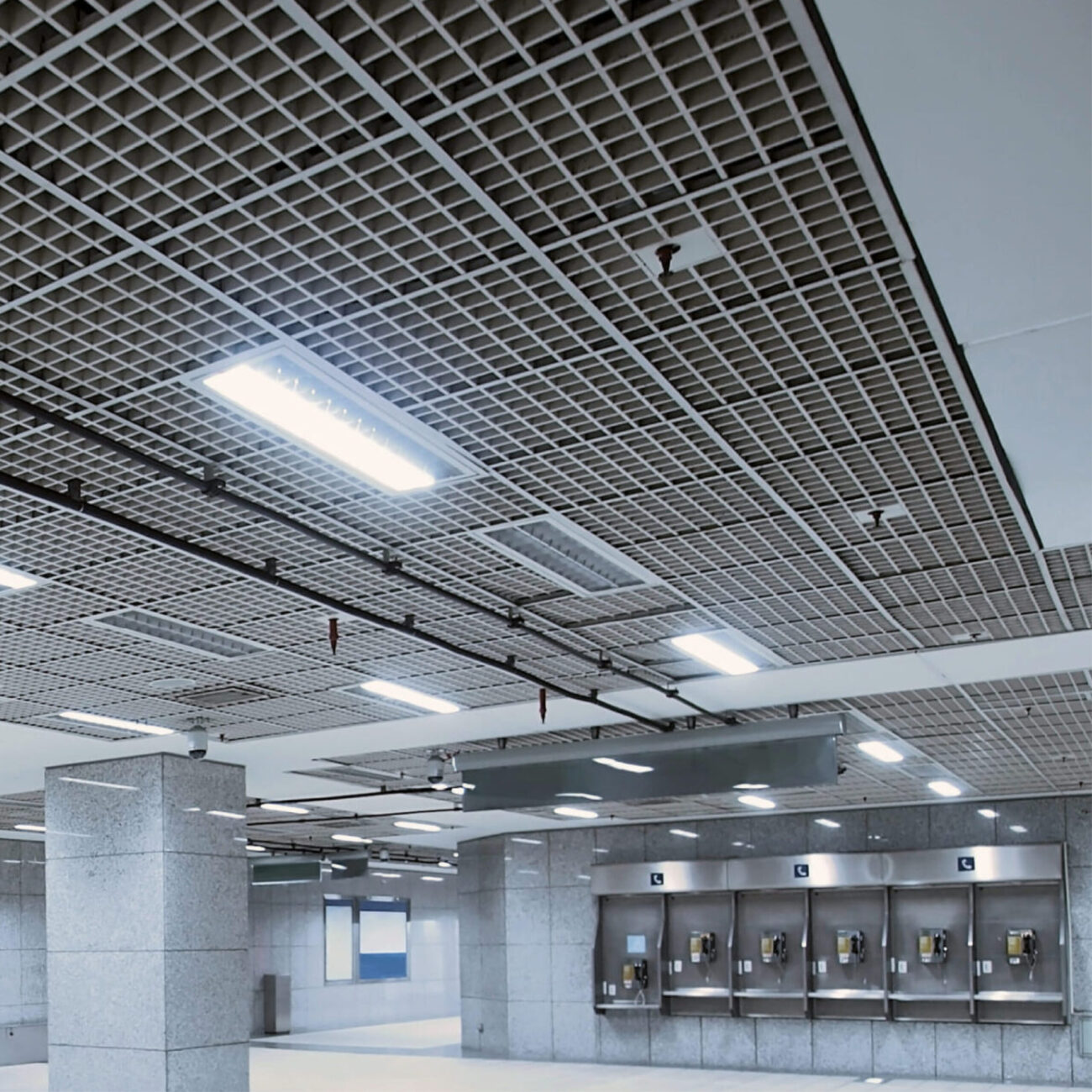

Properly conceived to be coupled with FOX T15, FOX LINE and “Z” profile structures, the system is suitable to realize several ceiling models in metal panels, metal mesh and open cells. The double face design means that the rounded side will be suitable for FOX LINE, while the right one will be fit for “Z” profiles and T15 runners. Therefore, Fox T15 can be used to realize acoustic floating island ceilings both with 15 LINEAR DESIGN metal panels and BASE 15 open cell modules. But the finest application is with 15 LINEAR DESIGN panels 90° edge and 9mm drop, installed with FOX LINE profiles. More over for a very minimal appeal, FOX LINE can also be used to realize the smart BASE 4 open cell ceiling.
Last but not least, FOX FRAME ceiling grid wall angle can frame raft suspended ceiling with custom made “Z” SYSTEM WS panels bigger than 600x600mm standard module. Profile hight, in fact, has been properly conceived to cover all this structure. Application is easy and fast, t-grid profiles will be screwed on lateral sides while with​ “Z” SYSTEM WS the “U” profiles will be connected through a joint screwed directly on the frame upside. Small brackets are used to fix the profiles at corner. Standard hangers or threaded bars hooked on t-grid and “U” profiles are then used to suspend the ceiling system.

FOX FRAMEceiling grid wall angle is the finest frame for island ceiling systems with
FOX T15, FOX LINE AND “Z” SYSTEM.
